Product Details
1. Fully Automatic Production Line for Colloidal Gold Test Cassettes - Features:
This integrated production line performs a complete series of operations, including:
Colloidal gold test strip storage → Automatic test strip feeding → CCD inspection and defect positioning → Automatic cutting → Defect rejection → Material receiving and positioning → Base shell feeding → Test strip insertion into base shell → CCD visual inspection of insertion result → Top cover feeding → UV laser marking → CCD inspection of marking quality → Cover pressing → CCD re-inspection of assembly quality → Automatic transfer to packaging machine track → Desiccant feeding via vibrating bowl → Packaging bag storage and feeding → Automatic marking/labeling of packaging bags → CCD inspection of labeling quality → Bagging of test cassette and desiccant → Bagging quality inspection and weight check → Sealer sealing → Automatic discharge and counting.
Every inspection station is equipped with automatic defective product rejection functionality. This production line enables full automation of the backend production and packaging processes for colloidal gold test cassettes. Simultaneously, the CCD code-reading function synchronizes, binds, and uploads product information to the customer’s factory MES system, enabling comprehensive product information storage and traceability.

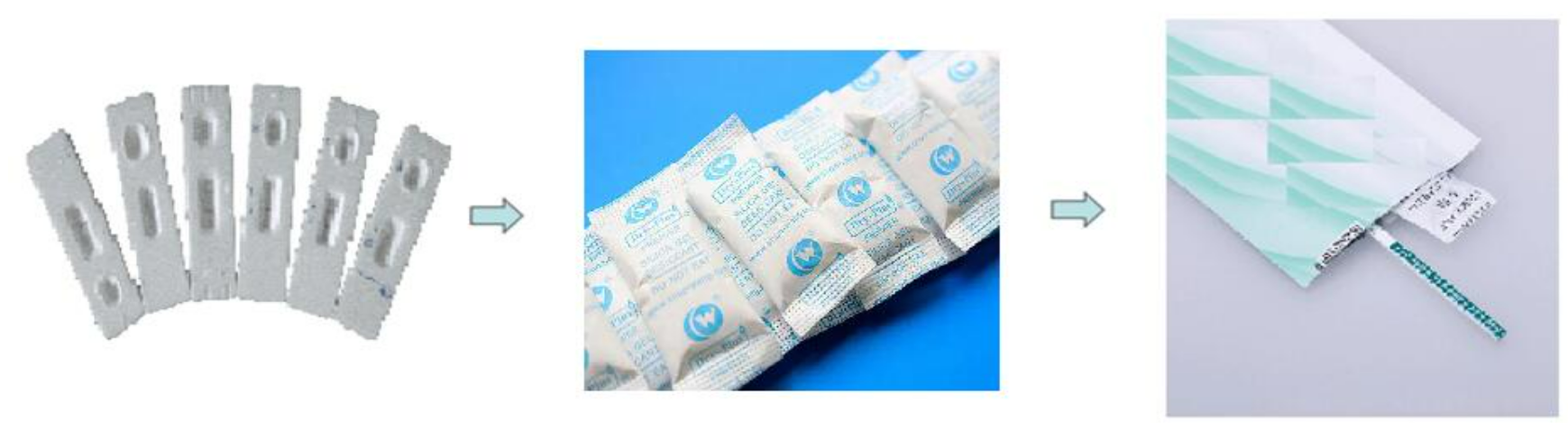

Test Cassette Desiccant Labeling & Bagging
2. Equipment Parameters:
Placement Accuracy: ±0.1mmCutting Accuracy: ±0.05mm
Visual Positioning Accuracy: ±0.05mm
Production Efficiency: ≥40 pcs/min, overall machine efficiency approx. 3600~4200 pcs/H (dual channel, efficiency affected by cassette dimensional accuracy)
Finished Product Yield Rate: ≥99.8%
Visual Recognition Accuracy Rate: ≥99.8%
Equipment Utilization Rate: ≥90%
Manual Labor: 1.5 persons
Air Pressure: 0.6 MPa (with an adjustable air valve)
Vacuum Negative Pressure Value: >65 kPa
Power Supply: AC380V 50Hz (Power: 10 KW)
Main Body Dimensions (L x W x H): Approx. 5500mm x 1300mm x 1900mm
Equipment Weight: Approx. 5000 kg
